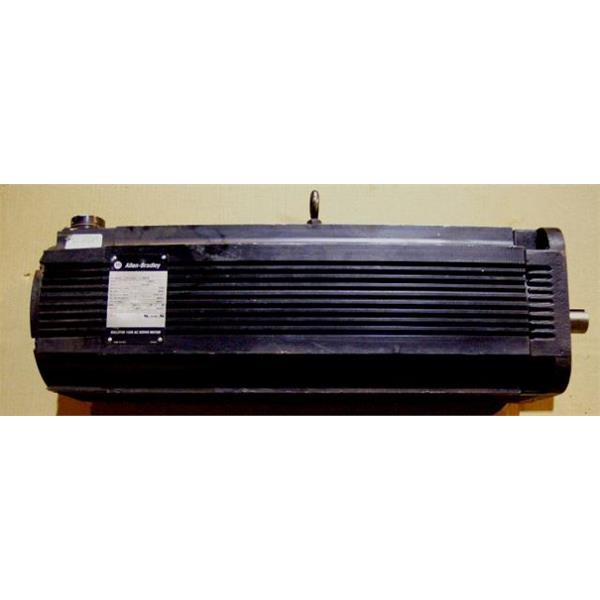

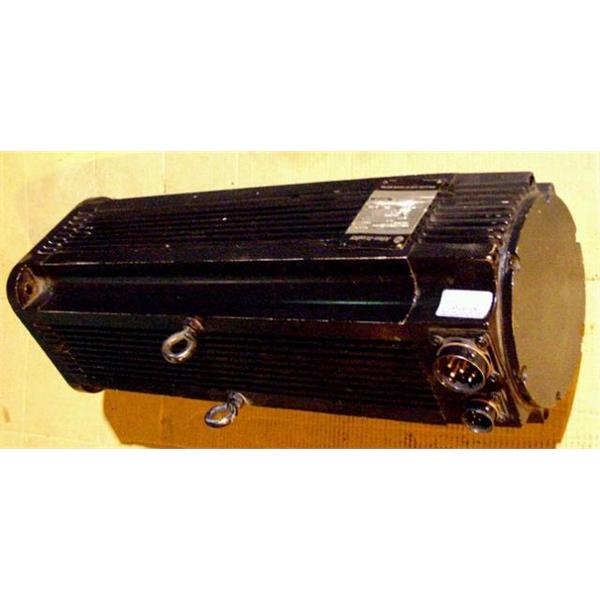

1326AB-B740C-21-K7 Ser. C

AC Servomotor - PM type
Frame diameter 5.88" (149mm)
Motor length 740
Maximum Operational Speed: 2000 RPM

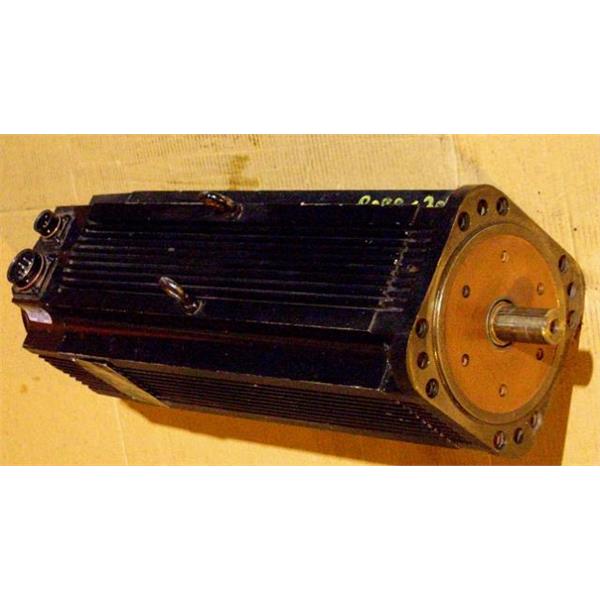

Mounting & shaft:  NEMA/IEC Metric Flange with Keyway.
400lb.-in (45.2 N-m) Spring-Set Holding Brake w/ 24VDC Coil.

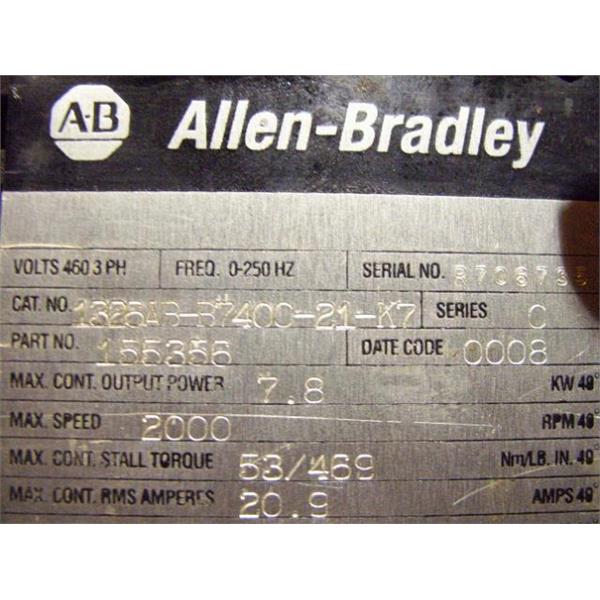

MAX CONT. STALL TORQUE 53/469
MAX CONT. RMS AMPERES 20.9

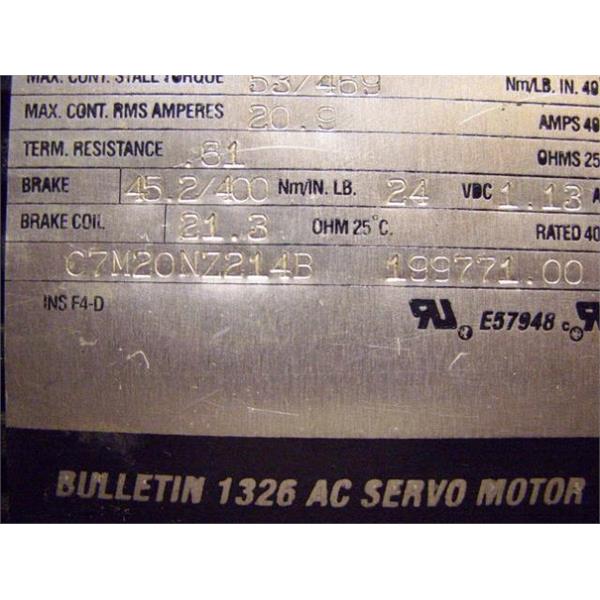

TERM RESISTANCE 51
BRAKER 45.2/400
BRAKER COIL 21.3

460 V 3 PHASE
SER C

The 1326AB Servomotors are a family of high performance, three-phase, brushless AC synchronous motors designed by Allen-Bradley to meet the stringent requirements of servo system applications. This series of standard AC servomotors can be used with 1391 AC Servo Controllers.

• Permanent magnet rotor for increased servo response.
  • Three-phase sinusoidal wound stator field for direct transfer of heat to
  ambient, and smooth operation at low speeds.
  • Brushless resolver supplies position, commutation & velocity feedback
  information. This also provides durability in harsh environments by not
  having on-board electronics in the motor. 1391 A Quad B (optional)
  encoder output (up to 2048 ppr) is generated via resolver feedback.
  • 100% continuous rated output torque at stall (zero rpm).
  • Precision balance of 0.0005” (0.0127 mm) total peak-peak
  displacement.
  • Vertical shaft up or down mounting.
  • TENV construction.
  • IP65 rated (when used with the Shaft Seal option) to withstand harsh
  environments. Motor is dust-tight and able to withstand pulsating water
  jets without liquid entering the motor.
  Important: 1326AB motors lose the IP 65 rating when externally
  mounted encoder/resolver feedback or blower packages are used.
  • Normally closed thermal switch in the motor winding (rated 115V AC at
  1A, 24V DC at 1A) provides thermal overload indication.
  • Environmentally sealed power and feedback cable packages. Power and
  resolver feedback cables can be ordered as standard (flex), track
  (multi-flex) or extended length (ES).
  • MIL spec connectors are standard.
  • Ferrite magnets for cost effective performance.
  • UL recognized insulation system (file # E57948).


datasheet

This Item was pulled from a working machine. We have no way of testing it once it is removed.

It is being sold in good condition unless otherwise stated.

The item in the pictures may not be the item you will receive,
