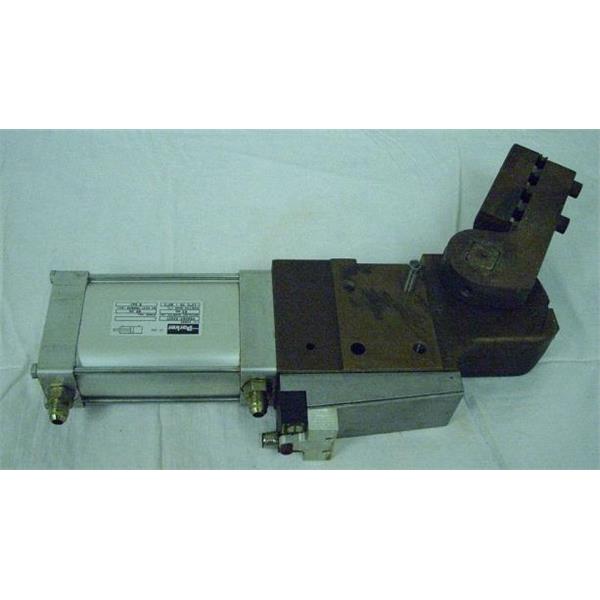

DeStaCo 82M-7D63 Oval Power Clamp

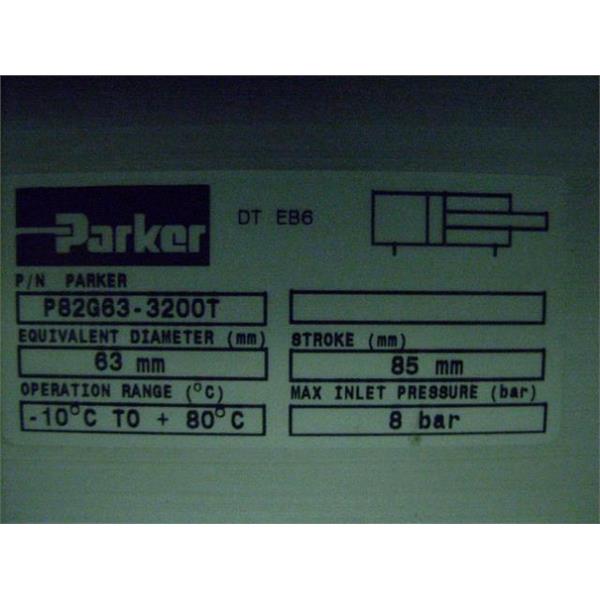

Destaco Pneumatic Clamp P82G63-3200T 63mm diameter 85 mm stroke Parker P82G63

Version 7 Specifications:

Weight: 10.1 lbs (4.6 Kg)
Holding Force: 737 ft-lbs (1000Nm)
Clamping Force at 75psi (5 bar): 309 ft-lbs (420Nm)
Max. Operating Pressure: 100psi (7 bar)
Arm Position Tolerance: +/- 0.33º
Arm Lateral Tolerance: +/- 0.3mm
Cylinder Bore: 2.48 in. (63mm)
Air Consumption per Minute at 85psi (6 bar): 0.13 ft3 (3.8 liters)
Opening Angle: 15º - 120º (In 15º Increments)
Port Options: 1/4 NPT and 1/4G, 180º apart on every cylinder

Reliability:
Mean Time Between Failure (MTBF): 3.25 Million Cycles
Mean Time to Repair (MTTR): 30 Minutes

The 82M Oval Power Clamp is ruggedly designed and built to perform repetitive production operations yet portable enough to use on end effectors and light-duty fixturing.

The 82M also features:

• Easily field-adjustable angle-of-opening modifications in 15º increments
• Gasket-sealed proximity switch cartridge
• Sealed roller bearings
• Toggle-lock release button
• NAAMS-Style Arms and Mounting Patterns
