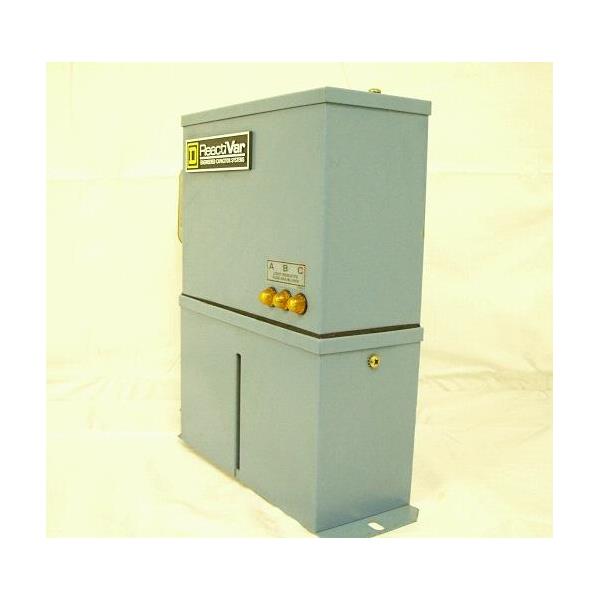

SQUARE D CAPACITOR PFCD 480V 10KVAR ReactiVar

RATING 10 KVAR

480 V; 12 AMPERE

3 PHASE

60 HZ

WIRE SIZE 12 AWG

NEMA 1/12

18 GAUGE STEEL ENCLOSURE

MEDIUM BLUE TEXTURED POLYESTER PAINTED ENCLOSURE FINISH

FLOOR/WALL MOUNTING

 APPLICATION INDOOR

Square D's new ReactiVar Fixed Power Factor Correction Capacitors are now constructed with an entirely dry dielectric system.

• Low loss self-healing Metalized Polypropylene Cell design has less than 0.5W/kVAR losses.

• n Patented Multiple Protection Feature incorporates an internal protection device which negates the need for external fuses. Capacitor elements are encased in a non-flammable vermiculite filler as an added safety feature.

• For specifications which call for fusing, 3 phase current-limiting fusing is standard.

• Blown fuse indicators are standard on fused units.

• Large terminals for easy cable connection.

• Available in Type 1/12 indoor and 3R outdoor enclosure types.

• Convenient ground lug included as standard.

• Common footprint on all units up to 100 kVAR.

• Attractive finish: Indoor units are constructed of welded mild steel finished in a medium-blue textured polyester paint finish. Outdoor units are finished in ASA 61 light-grey outdoor paint.
• Mounting feet for easy installation.
• Wall mounting brackets available.
• UL Listed.

• CSA Certified.
• Complies with IEC standards.
