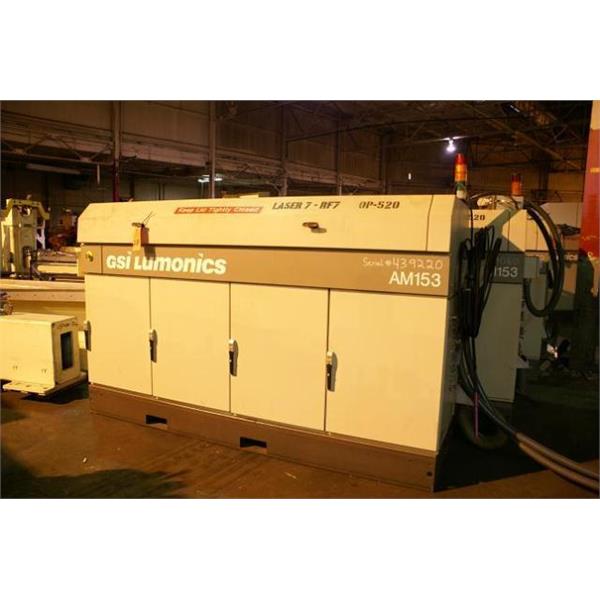

GSI LUMONICS AM153 FIBER INDUSTRIAL LASER

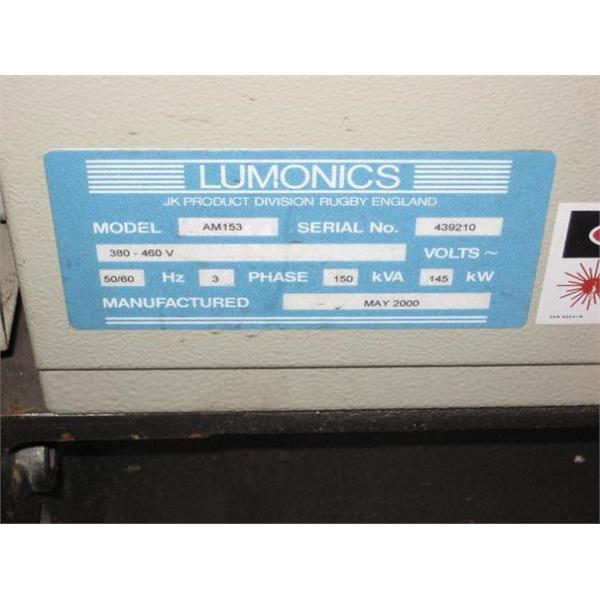

380-460V / 50-60 Hz

LASER PARAMETERS

Typical operating power at Laser Source(at start of lamp life)  0.5-1.8kW

Laser power at workpiece(at end of lamp life) 1.5kW

Minimum power at laser source 500 W

Beam quality (radius x half angle) 25 mm.mrad

Gating capability 20-500 Hz

Shutter response time 50 ms

Fibre Optic Beam Delivery

Fibre diameter 400/600μm

Standard fibre lengths 15 m, 30m

Maximum fibre length 50 m

The AM153 provides optimized performance and lower operating costs for
trimming of thicker-section hydroformed tubes or high-speed cutting of
sheet metal parts.

laser power ranging from 1 to 3.5
kW at the workpiece, the systems also

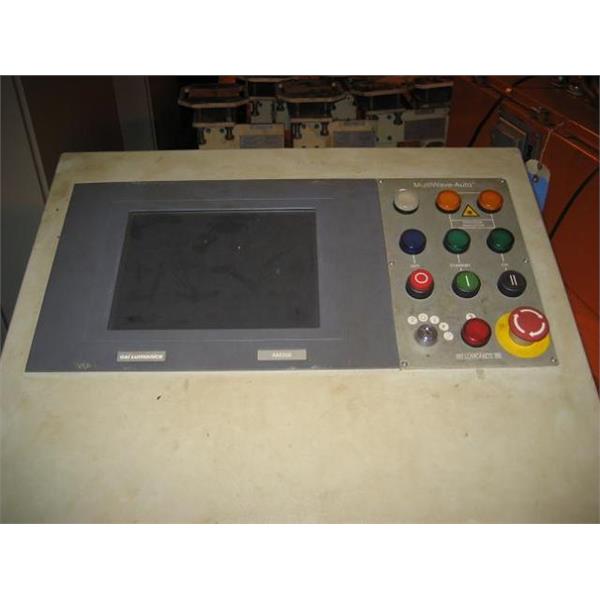

feature a user-friendly touchscreen
interface, remote status monitoring
capability through a modem link, modular
construction that reduces time for
maintenance activities to less than 30
minutes, and a unique split cooling
system that reduces chiller requirements by 80 percent.

Fiber laser used for welding, cutting, marking and micromachining operations.
World-leading fiber laser technology has the energy to transform your manufacturing process. Welding, cutting, marking and micromachining operations can be carried out faster and more accurately with a fiber laser. Better reliability, less waste and improved productivity. Laser technology solves manufacturing problems by moving the boundaries of what is possible, making good products better and enabling new designs.
