Details

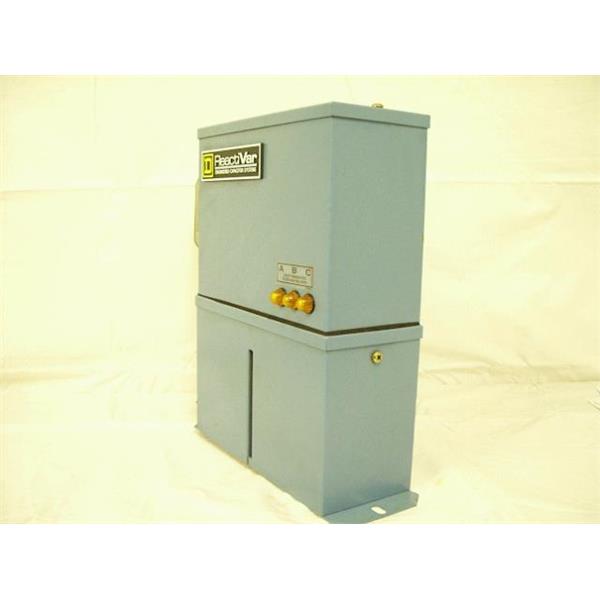

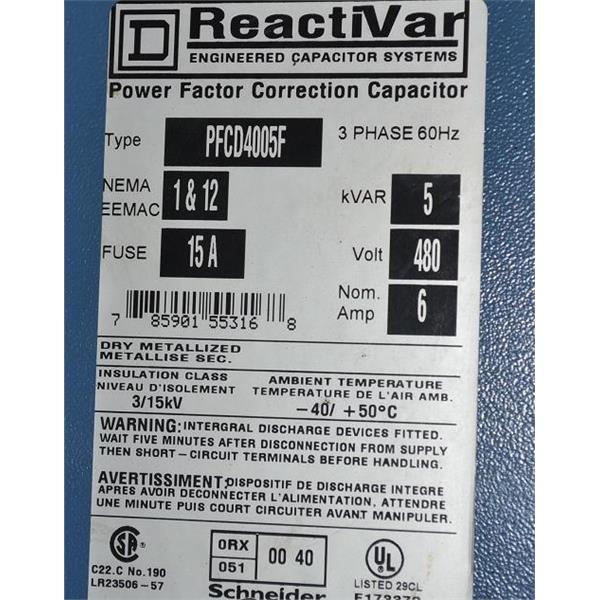

SQUARE D CAPACITOR PFCD 480V 5 KVar TYPE
RATING 5 KVAR
480 V
15 AMPERE
3 PHASE
60 HZ
MEDIUM BLUE TEXTURED POLYESTER PAINTED ENCLOSURE FINISH
FLOOR/WALL MOUNTING
APPLICATION INDOOR
EXCELLENT CONDITION
REMOVED FROM A WORKING LINE. LOWEST PRICE AROUND.
Recommended Protection Rating (Fuse): 15A@480VAC
For Use With: Electrical systems with no voltage or current harmonics
Square D's new ReactiVar Fixed Power Factor Correction Capacitors are now constructed with an entirely dry dielectric system.
-
New dry design provides no risk of fluid leakage, no environmental pollution and no need for drip pans.
-
Low loss self-healing Metalized Polypropylene Cell design has less than 0.5W/kVAR losses.
-
n Patented Multiple Protection Feature incorporates an internal protection device which negates the need for external fuses. Capacitor elements are encased in a non-flammable vermiculite filler as an added safety feature.
-
For specifications which call for fusing, 3 phase current-limiting fusing is standard.
-
Blown fuse indicators are standard on fused units.
-
Large terminals for easy cable connection.
-
Available in Type 1/12 indoor and 3R outdoor enclosure types.
-
Convenient ground lug included as standard.
-
Common footprint on all units up to 100 kVAR.
-
Attractive finish: Indoor units are constructed of welded mild steel finished in a medium-blue textured polyester paint finish. Outdoor units are finished in ASA 61 light-grey outdoor paint.
-
CSA Certified.
-
Complies with IEC standards.
